Portable Saws

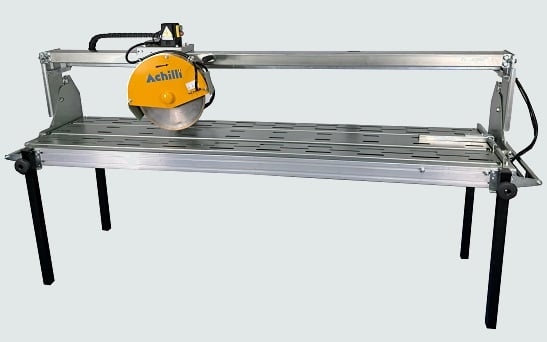

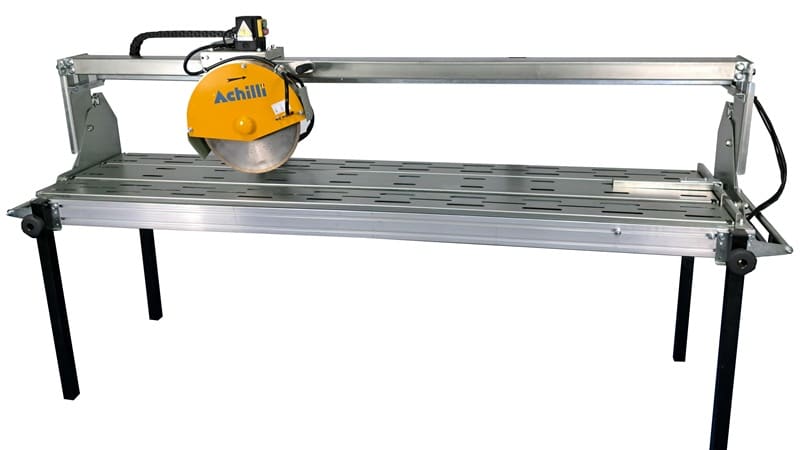

ALU PLUS
PORTABLE BENCH SAW FOR TILES, STONES AND BUILDING MATERIALS.
Portable bench saw with a robust aluminum structure, engineered for precise cutting and long-lasting performance, even in demanding jobsite conditions.
ADVANTAGES
The ALU PLUS construction site saw features an aluminum frame and is ideal for cutting stone and building materials.
- Extruded aluminum profile frame with high torsional rigidity;
- 100×60mm pickled sheet steel beam for enhanced structural strength;
- Removable, shock-resistant ABS water tank;
- Folding legs and side handles for easy transport and handling.
TECHNICAL DETAILS
| 1 | 2 |
|---|---|
| Useful cut | 600-800-1000-1300-1500-2000 mm (2’- 2’7” – 3’3” – 4’3” – 4’11”- 6'6") |
| Ø Diamond blade | 250-300-350 mm (10”–12”–14”) |
| Blade bore size | 25,4 mm (1") |
| Motor power | 2.2 kW = 3HP 1phase |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz |
| Standard voltage/ frequency | 230V-50/60Hz |

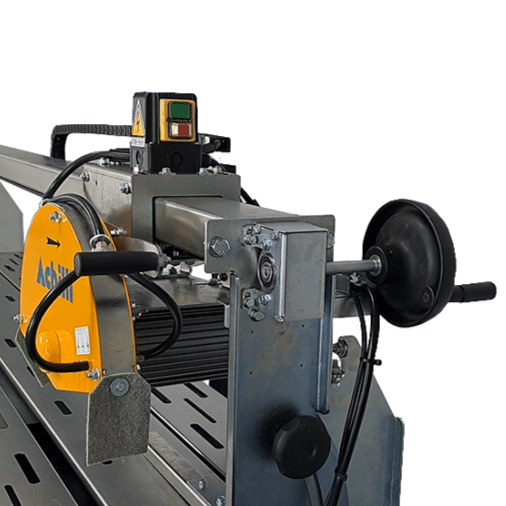

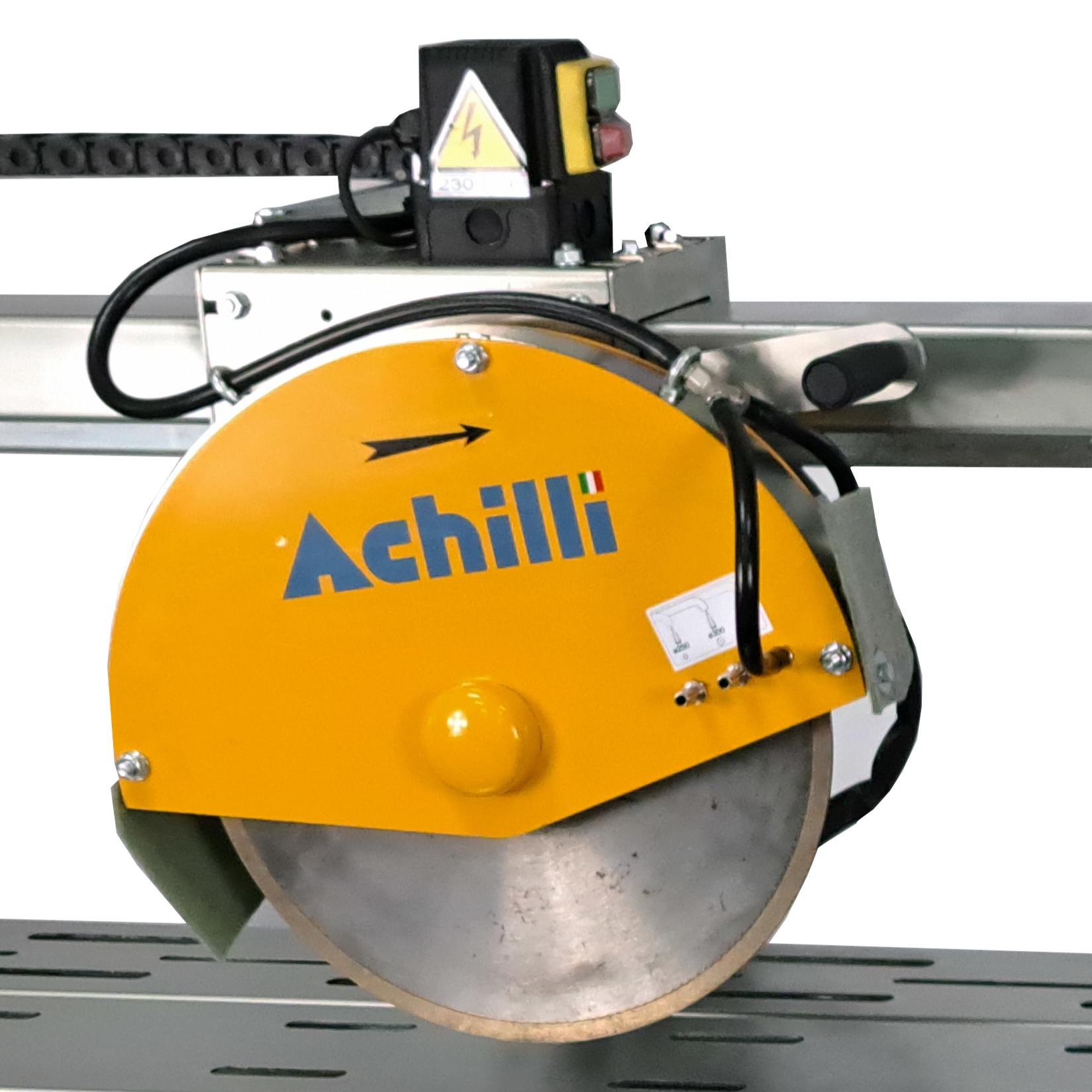

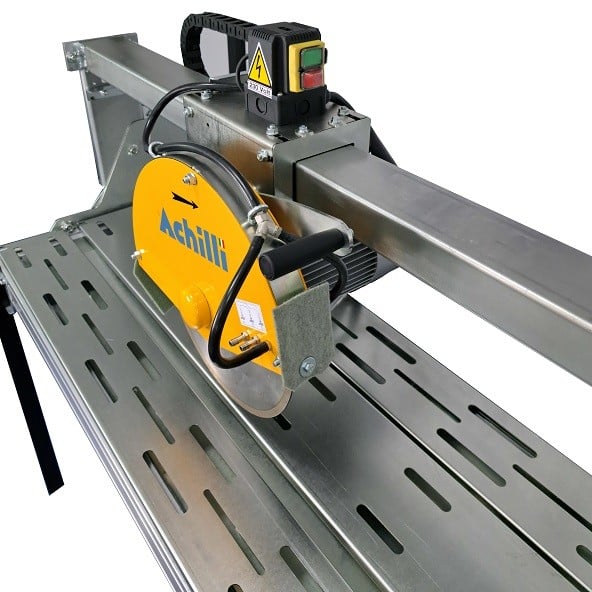

HEAD MOTION

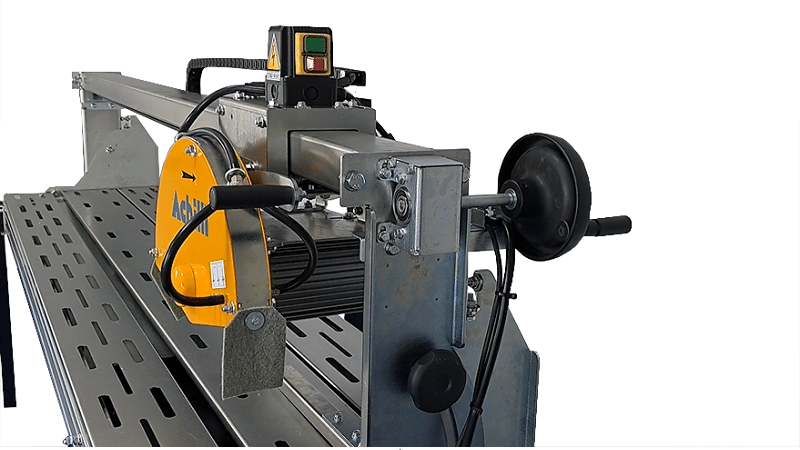

Manual head feed, available with useful cut: 24in. (600mm), 32in. (800mm), 40in. (1000mm), 52in. (1300mm), 60in. (1500mm), 79in (2000mm).

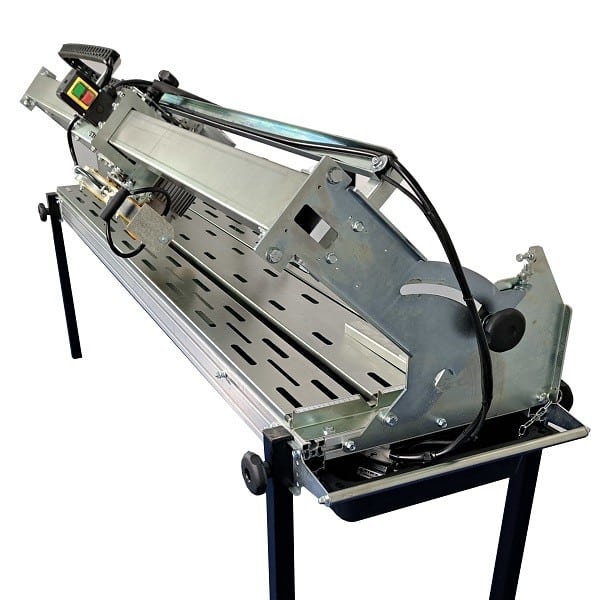

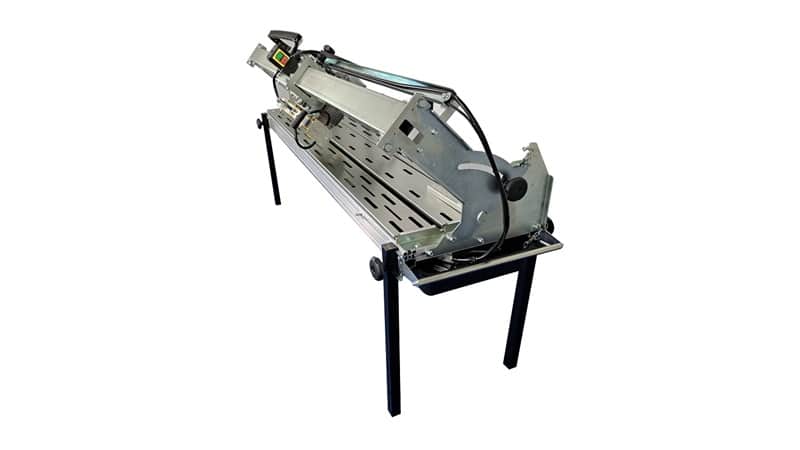

Manual bridge tilt for cutting from 90 to 45 degrees.
WORKTABLE

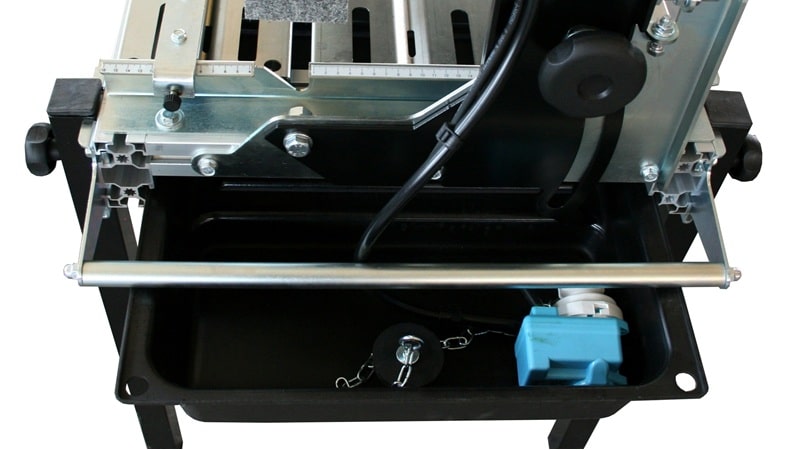

Worktable made of galvanized steel rails, with built-in handles and service square. Removable ABS water tank, impact- and wear-resistant, easy to clean and designed with a sludge separation area. Built-in recycling pump included for blade cooling during cutting.
Manual cutting depth adjustment by “plunge” mechanism.
Folding legs for easy transport.
