Bridge Saws
AFR C
MANUAL STONE CUTTING MACHINE AFR-C
BRIDGE SAW WITH FIXED BRIDGE AND MANUAL HEAD FEED
Compact, essential and sturdy saw with fixed bridge and manual head feed for marble and granite slabs; the bridge tilts and the water tank with built-in recycling pump makes it the perfect for small and large stone fabrication shops. It is equipped with 1 or 2 side extension tables to enlarge the working surface and facilitate the positioning of the slabs
ADVANTAGES
Fully equipped and manual bench saw with fixed bridge AFR-C for cutting stone slabs:
- Available with several useful cutting versions, according to customer requirements;
- Maximum cutting precision guaranteed by a special beam design;
- Sturdy and compact structure to work any kinds of slabs;
- Manual head feed by hand crank.
TECHNICAL DETAILS
| AFR-C | AFR-C HT | |
|---|---|---|
| AFR-C | AFR-C HT | |
| Useful cut | 1000–1500–2000-2500–3000–3300-3500 mm (3’3” - 4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’) | 1000–1500–2000-2500–3000–3300-3500 mm (3’3” - 4’11” – 6’6” – 8’2” – 9’10” – 10’10” – 11”5’) |
| Diamond blade diameter | 250-300-350 mm (10”–12”–14”) | 400-450-500 mm (16”–18”–20”) |
| Blade bore size | 25.4 mm (1") | 25.4 mm (1") |
| Motor power | 3kW = 4HP (3ph.) | 4kW = 5.5HP (3ph.) |
| Motor rotation speed | 2800 rpm a 50Hz – 3400 rpm a 60Hz | 1400 rpm a 50Hz – 1700 rpm a 60Hz |
| Standard voltage/ frequency | 400V-50/60Hz /230V-60Hz 3ph. | 400V-50/60Hz /230V-60Hz 3ph. |

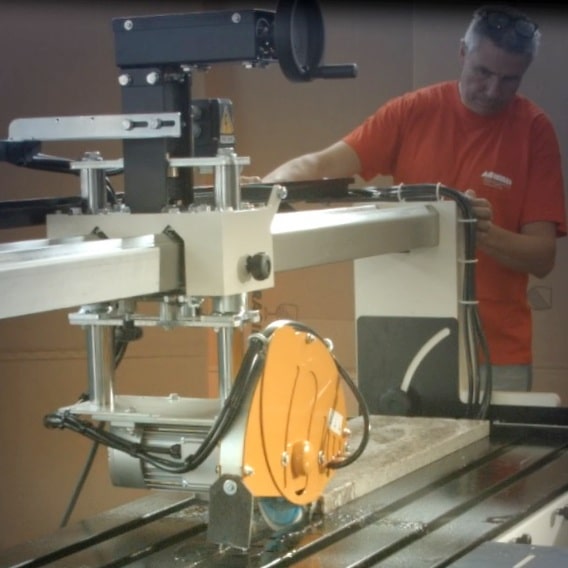

HEAD FEED
Manual head feed, useful cut: 60, 79, 99, 118, 130, 138in. (1500, 2000, 2500, 3000, 3300, 3500mm).

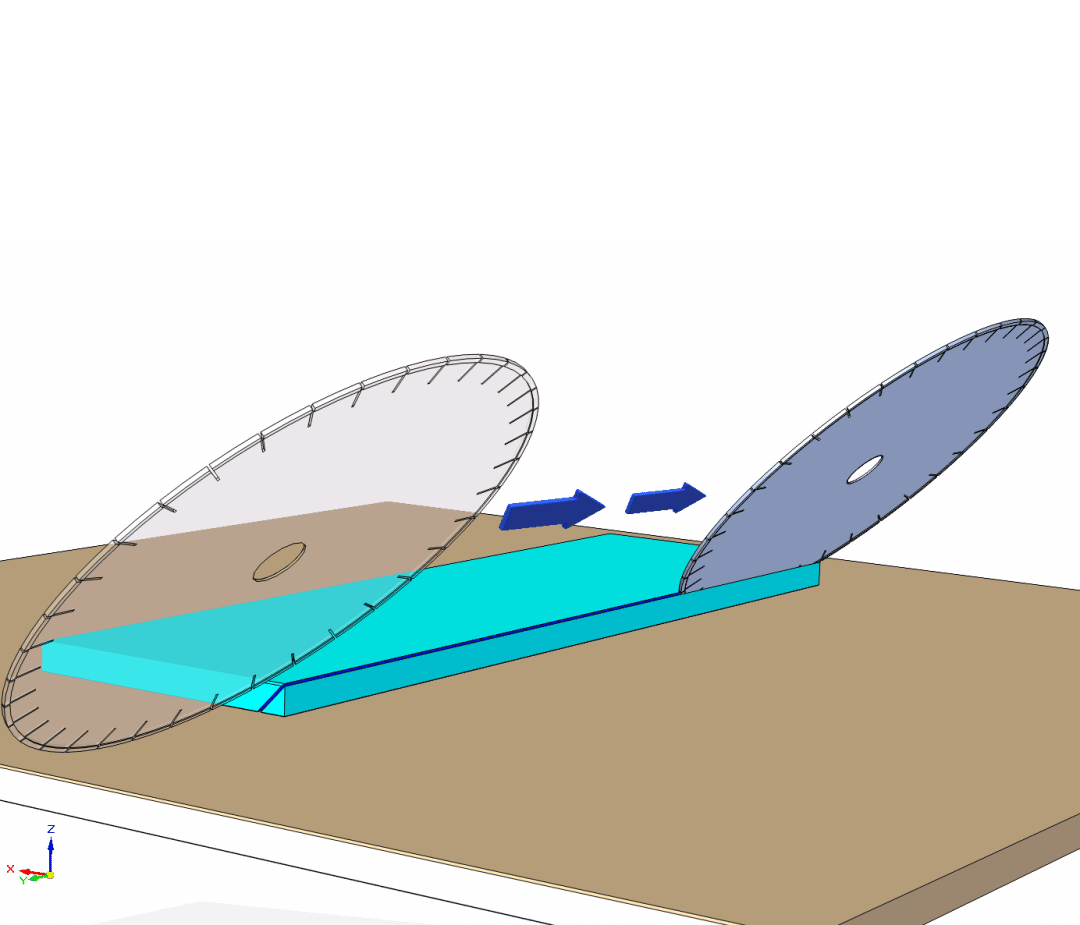

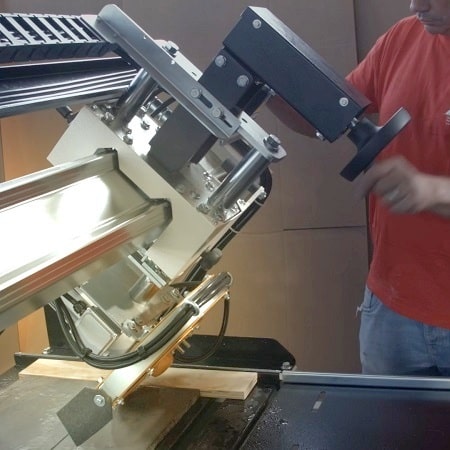

BRIDGE TILT
Manual bridge tilt for cutting from 90 to 45 degrees.

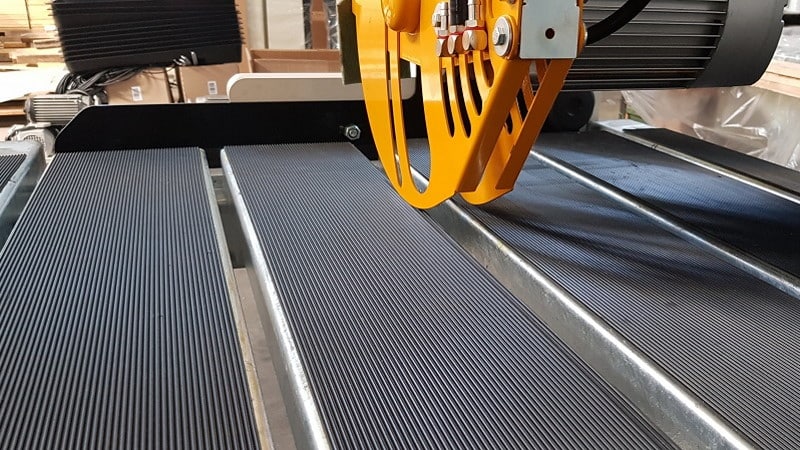

WORKTABLE
Worktable made of galvanized steel rails.
CUTTING DEPTH ADJUSTMENT
Manual cutting depth adjustment.
